Putting together the whole Ghost platform

This is the final part of the Ghost platform deployment procedure. Here you are going to declare:

  • The persistent storage volumes claimed by the Ghost components.
  • The TLS certificate for encrypting client communications with the Ghost platform.
  • The Traefik ingress resource that enables HTTPS access to the Ghost platform.
  • The namespace for the whole Ghost platform’s Kubernetes setup.

You will put all these elements together with the components Kustomize subprojects you have already created under a single main Kustomize project.

Create a folder for the pending Ghost platform resources

The pieces that have not been declared yet in this Ghost platform deployment are all resources. Start by creating a folder where to put their YAML declarations together under the root folder of the Ghost platform Kustomize project:

$ mkdir -p $HOME/k8sprjs/ghost/resources

Ghost platform’s persistent volumes

A PersistentVolume is the Kubernetes resource for enabling in your K3s cluster the LVM storage volumes you arranged in the first part of this Ghost deployment procedure:

  1. You need to create three different persistent volumes, so prepare a new YAML for each of them:

    $ touch $HOME/k8sprjs/ghost/resources/{ghost-ssd-cache,ghost-ssd-db,ghost-hdd-srv}.persistentvolume.yaml

  2. Declare the persistent volume for the Valkey cache server instance in ghost-ssd-cache.persistentvolume.yaml:

    # Persistent storage volume for the Ghost cache
apiVersion: v1
kind: PersistentVolume

metadata:
  name: ghost-ssd-cache
spec:
  capacity:
    storage: 2.8G
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-path
  persistentVolumeReclaimPolicy: Retain
  local:
    path: /mnt/ghost-ssd/cache/k3smnt
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - k3sagent02

  3. Declare the persistent volume for the MariaDB server instance in ghost-ssd-db.persistentvolume.yaml:

    # Persistent storage volume for the Ghost database
apiVersion: v1
kind: PersistentVolume

metadata:
  name: ghost-ssd-db
spec:
  capacity:
    storage: 6.5G
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-path
  persistentVolumeReclaimPolicy: Retain
  local:
    path: /mnt/ghost-ssd/db/k3smnt
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - k3sagent02

  4. Declare the persistent volume for the Ghost server instance in ghost-hdd-srv.persistentvolume.yaml:

    # Persistent storage volume for the Ghost server
apiVersion: v1
kind: PersistentVolume

metadata:
  name: ghost-hdd-srv
spec:
  capacity:
    storage: 9.3G
  volumeMode: Filesystem
  accessModes:
  - ReadWriteOnce
  storageClassName: local-path
  persistentVolumeReclaimPolicy: Retain
  local:
    path: /mnt/ghost-hdd/srv/k3smnt
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - k3sagent02

All these PersistentVolume declarations use exactly the same parameters:

  • In the metadata section, the name strings are the same ones set in the claims you declared for the MariaDB and Seafile servers.

  • In the spec section there are a number or particularities:

    • The spec.capacity.storage is a decimal number in gigabytes (G). Internally the decimal value will be converted to megabytes (M). Be sure of not assigning more capacity than is really available in the underlying storage, something you can check on the node with the command df -h.

    Important

    Be careful with the units you use in Kubernetes
    It is not the same typing 1G (1000M) than 1Gi (1024 Mi). Check out this Stackoverflow question about the matter for further clarification.

    • The spec.volumeMode is set to Filesystem because the underlying LVM volume has been formatted with an ext4 filesystem. The alternative value is Block, and its valid only for raw (unformatted) volumes connected through storage plugins that support that format (local-path doesn’t).

    • The spec.accessModes list has just the ReadWriteOnce value to ensure that only one pod (hence the Once part) has read and write access to the volume.

    • The spec.storageClassName is a parameter that indicates what storage profile (a particular set of properties) to use with the persistent volume. Remember that you only have one available in your K3s cluster, local-path, so that is the one you have to use.

      Important

      Mind the value you set in the storageClassName parameter
      If you leave the storageClassName parameter unset, its value is set internally to the default one (local-path in a K3s cluster). On the other hand, if the value is the empty string (storageClassName: ""), this leaves the volume with no storage class assigned at all.

    • The spec.persistentVolumeReclaimPolicy parameter is about the reclaim policy to apply to this persistent volume. When all the persistent volume claims that required this volume are deleted from the cluster, the system must know what to do with this storage.

      • There are only two policies to use here: Retain or Delete.

      • Left unset, it is set to whatever reclaim policy is set in the storage class. The local-path has it on Delete.

      • Retain deletes the persistent volume from the cluster but not the associated storage asset. This means that whatever data stored there gets preserved.

      • Delete deletes both the persistent volume and the associated storage asset, but only if the volume plugin/storage provisioner used supports it. In the case of the Rancher local-path-provisioner used in K3s (associated with the local-path storage class), it automatically cleans up the contents stored in the volume.

    • In spec.local.path is where you specify the absolute path, within the node’s filesystem, where you want to mount this volume. Notice how, in all the PVs, it has the path to their corresponding k3smnt folder you already left prepared in your k3sagent02 VM.

    • The spec.nodeAffinity block restricts to which node in the cluster a persistent volume will be binded to. Since the storage used in this guide’s setup is local, you have to ensure with this set of parameters that the persistent volume is assigned to the node where the storage space truly exists. This affinity configuration would not be necessary in the case of using a distributed storage system.

      In the YAML declarations above, you can see how in all the PVs there is only one node affinity rule that looks for the hostname of the node (the key in the matchExpressions section), and checks if it is In (the operator parameter) the list of admitted values. Since the k3sagent02 node is the only one with the storage ready for those volumes, its hostname is the only value in the list.

Ghost platform’s TLS certificate

To encrypt the communications between your Ghost platform and its clients, you need a TLS certificate like the one created previously in the deployment of Headlamp:

  1. Create a ghost.homelab.cloud-tls.certificate.cert-manager.yaml file under resources:

    $ touch $HOME/k8sprjs/ghost/resources/ghost.homelab.cloud-tls.certificate.cert-manager.yaml

  2. Declare the certificate in resources/ghost.homelab.cloud-tls.certificate.cert-manager.yaml:

    # TLS certificate for Ghost
apiVersion: cert-manager.io/v1
kind: Certificate

metadata:
  name: ghost.homelab.cloud-tls
spec:
  isCA: false
  secretName: ghost.homelab.cloud-tls
  duration: 2190h # 3 months
  renewBefore: 168h # Certificates must be renewed some time before they expire (7 days)
  dnsNames:
  - ghost.homelab.cloud
  privateKey:
    algorithm: ECDSA
    size: 521
    encoding: PKCS8
    rotationPolicy: Always
  issuerRef:
    name: homelab.cloud-intm-ca01-issuer
    kind: ClusterIssuer
    group: cert-manager.io

    This certificate is adjusted to work with the DNS name the Ghost server is expected to have in the local network. It also includes the alternative DNS name configured in the Ghost server for accessing the Admin API.

Traefik IngressRoute for enabling HTTPS access to the Ghost platform

As you did with the Traefik dashboard or Headlamp, better handle the ingress into your Ghost platform with a Traefik IngressRoute. This allows you to provide a proper HTTPS access that uses the TLS certificate you have declared in the previous section:

  1. Create the ghost.homelab.cloud.ingressroute.traefik.yaml in the resources folder:

    $ touch $HOME/k8sprjs/ghost/resources/ghost.homelab.cloud.ingressroute.traefik.yaml

  2. Declare the Traefik IngressRoute object in resources/ghost.homelab.cloud.ingressroute.traefik.yaml:

    # HTTPS ingress for Ghost
apiVersion: traefik.io/v1alpha1
kind: IngressRoute

metadata:
  name: ghost.homelab.cloud
spec:
  entryPoints:
  - websecure
  routes:
  - kind: Rule
    match: Host(`ghost.homelab.cloud`)
    services:
    - kind: Service
      name: server-ghost
      passHostHeader: true
      port: server
      scheme: http
  tls:
    secretName: ghost.homelab.cloud-tls

    This ingress configures an HTTPS route into the Ghost platform:

    • The spec.entryPoints only enables the websecure (HTTPS) access to the route declared below.

    • The route to get into the Ghost platform is enabled in spec.routes.

    • This route invokes the server-ghost service and calls its port by name (which is named server). Also enables forwarding the client’s Host header to the Ghost server with the passHostHeader option and specify that requests have the http scheme.

    • The TLS certificate is set in the tls.secretName parameter.

Ghost Namespace

To avoid naming conflicts with any other resources you could have running in your K3s cluster, it is better to put all the components of your Ghost platform under their own exclusive namespace:

  1. Since a Namespace is also a Kubernetes resource, create a file for it under the resources folder:

    $ touch $HOME/k8sprjs/ghost/resources/ghost.namespace.yaml

  2. Declare the Namespace resource in resources/ghost.namespace.yaml:

    # Namespace for the Ghost components
apiVersion: v1
kind: Namespace

metadata:
  name: ghost

    As you see above, the Namespace is one of the simplest resources you can declare in a Kubernetes cluster.

Main Kustomize project for the Ghost platform

With every required element declared or configured, now you need to put everything together under a single main Kustomize project:

  1. Create a kustomization.yaml file under the root ghost folder of the Ghost platform’s deployment project:

    $ touch $HOME/k8sprjs/ghost/kustomization.yaml

  2. Declare the main Kustomize project in kustomization.yaml:

    # Ghost platform setup
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: ghost

labels:
- pairs:
    platform: ghost
  includeSelectors: true
  includeTemplates: true

resources:
- resources/ghost-hdd-srv.persistentvolume.yaml
- resources/ghost-ssd-cache.persistentvolume.yaml
- resources/ghost-ssd-db.persistentvolume.yaml
- resources/ghost.homelab.cloud-tls.certificate.cert-manager.yaml
- resources/ghost.homelab.cloud.ingressroute.traefik.yaml
- resources/ghost.namespace.yaml
- components/cache-valkey
- components/db-mariadb
- components/server-ghost

    Be aware of the following details:

    • The ghost namespace is applied to all the namespaced resources coming out of this Kustomize project, except:

      • The Namespace object itself.
      • The PersistentVolume resources.

    • The labels brands all the resources part of this Kustomize project with a platform label. Remember that you already set an app label within each major component.

    • In the resources list you have YAML files and also the directories of the components you have configured in the previous parts of this guide.

      Note

      Kustomize projects can be added as resources
      You can add directories as resources only if they have a kustomization.yaml inside that can be read by Kustomize. In other words, you can list Kustomize projects as resources for another Kustomize project.

Validating the Kustomize YAML output

Before deploying your Ghost Kustomize project, review first its YAML output:

  1. Since this particular output is going to be rather long, you may find more convenient to dump the resulting YAML into a file such as ghost.k.output.yaml:

    $ kubectl kustomize $HOME/k8sprjs/ghost > ghost.k.output.yaml

  2. Open the ghost.k.output.yaml file and compare your resulting YAML output with this one:

    apiVersion: v1
kind: Namespace
metadata:
  labels:
    platform: ghost
  name: ghost
---
apiVersion: v1
data:
  valkey.conf: |-
    # Custom Valkey configuration
    bind 0.0.0.0
    protected-mode no
    port 6379
    maxmemory 64mb
    maxmemory-policy allkeys-lru
    aclfile /etc/valkey/users.acl
    dir /data
kind: ConfigMap
metadata:
  labels:
    app: cache-valkey
    platform: ghost
  name: cache-valkey-config-c86dc4fh5d
  namespace: ghost
---
apiVersion: v1
data:
  ghost-db-name: ghost-db
  ghost-username: ghostdb
  initdb.sh: |-
    #!/bin/sh
    echo ">>> Creating user for MariaDB Prometheus metrics exporter"
    mysql -u root -p$MYSQL_ROOT_PASSWORD --execute \
    "CREATE USER '${MARIADB_PROMETHEUS_EXPORTER_USERNAME}'@'localhost' IDENTIFIED BY '${MARIADB_PROMETHEUS_EXPORTER_PASSWORD}' WITH MAX_USER_CONNECTIONS 3;
    GRANT PROCESS, REPLICATION CLIENT, SELECT ON *.* TO '${MARIADB_PROMETHEUS_EXPORTER_USERNAME}'@'localhost';
    FLUSH privileges;"
  my.cnf: |-
    [client]
    default-character-set = utf8mb4

    [server]
    # General parameters
    skip_name_resolve = ON
    max_connections = 50
    thread_cache_size = 50
    character_set_server = utf8mb4
    collation_server = utf8mb4_general_ci
    tmp_table_size = 64M

    # InnoDB storage engine parameters
    innodb_buffer_pool_size = 256M
    innodb_io_capacity = 2000
    innodb_io_capacity_max = 3000
    innodb_log_buffer_size = 32M
    innodb_log_file_size = 256M
  prometheus-exporter-username: promexp
kind: ConfigMap
metadata:
  labels:
    app: db-mariadb
    platform: ghost
  name: db-mariadb-config-t9c84t7h62
  namespace: ghost
---
apiVersion: v1
data:
  GHOST_CONTENT: /home/nonroot/app/ghost/content
  GHOST_INSTALL: /home/nonroot/app/ghost
  NODE_ENV: production
kind: ConfigMap
metadata:
  labels:
    app: server-ghost
    platform: ghost
  name: server-ghost-env-vars-9ggkgtdt7b
  namespace: ghost
---
apiVersion: v1
data:
  users.acl: |
    dXNlciBkZWZhdWx0IG9uIH4qICYqICtAYWxsID5QNHM1VzByZF9GT3JfN2gzX0RlRjR1MX
    RfdVNFcgp1c2VyIGdob3N0Y2FjaGUgb24gfmdob3N0OiogJiogYWxsY29tbWFuZHMgPnBB
    UzJ3T1JUX2Ywcl9UI2VfR2gwNVRfVXMzUg==
kind: Secret
metadata:
  labels:
    app: cache-valkey
    platform: ghost
  name: cache-valkey-acl-bcc5gh9d6g
  namespace: ghost
type: Opaque
---
apiVersion: v1
data:
  REDIS_PASSWORD: UDRzNVcwcmRfRk9yXzdoM19EZUY0dTF0X3VTRXI=
  REDIS_USER: ZGVmYXVsdA==
kind: Secret
metadata:
  labels:
    app: cache-valkey
    platform: ghost
  name: cache-valkey-exporter-user-6mdd99ft8d
  namespace: ghost
type: Opaque
---
apiVersion: v1
data:
  ghost-user-password: bDBuRy5QbDRpbl9UM3h0X3NFa1JldF9wNHM1d09SRC1Gb1JfNmgwc1RfdVozciE=
  prometheus-exporter-password: bDBuRy5QbDRpbl9UM3h0X3NFa1JldF9wNHM1d09SRC1Gb1JfM3hQMHJUZVJfdVozciE=
  root-password: bDBuRy5QbDRpbl9UM3h0X3NFa1JldF9wNHM1d09SRC1Gb1Jfck9vN191WjNyIQ==
kind: Secret
metadata:
  labels:
    app: db-mariadb
    platform: ghost
  name: db-mariadb-passwords-dtt9d6h2b9
  namespace: ghost
type: Opaque
---
apiVersion: v1
data:
  config.production.json: |
    ewogICJ1cmwiOiAiaHR0cHM6Ly9naG9zdC5ob21lbGFiLmNsb3VkIiwKICAic2VydmVyIj
    ogewogICAgImhvc3QiOiAiMC4wLjAuMCIsCiAgICAicG9ydCI6IDIzNjgKICB9LAogICJs
    b2dnaW5nIjogewogICAgInRyYW5zcG9ydHMiOiBbCiAgICAgICAgInN0ZG91dCIKICAgIF
    0KICB9LAogICJtYWlsIjogewogICAgInRyYW5zcG9ydCI6ICJTTVRQIiwKICAgICJmcm9t
    IjogImluZm9AZ2hvc3QuaG9tZWxhYi5jbG91ZCIsCiAgICAib3B0aW9ucyI6IHsKICAgIC
    AgInNlcnZpY2UiOiAiR29vZ2xlIiwKICAgICAgImhvc3QiOiAic210cC5nbWFpbC5jb20i
    LAogICAgICAicG9ydCI6IDQ2NSwKICAgICAgInNlY3VyZSI6IHRydWUsCiAgICAgICJhdX
    RoIjogewogICAgICAgICJ1c2VyIjogInlvdXJfZ2hvc3RfZW1haWxAZ21haWwuY29tIiwK
    ICAgICAgICAicGFzcyI6ICJZMHVyXzZoTzV0X2VNNDFsX1A0U3N2dm9SZCIKICAgICAgfQ
    ogICAgfQogIH0sCiAgImFkYXB0ZXJzIjogewogICAgImNhY2hlIjogewogICAgICAiUmVk
    aXMiOiB7CiAgICAgICAgImhvc3QiOiAiY2FjaGUtdmFsa2V5Lmdob3N0LnN2Yy5ob21lbG
    FiLmNsdXN0ZXIuIiwKICAgICAgICAicG9ydCI6IDYzNzksCiAgICAgICAgInVzZXJuYW1l
    IjogImdob3N0Y2FjaGUiLAogICAgICAgICJwYXNzd29yZCI6ICJwQVMyd09SVF9mMHJfVC
    NlX0doMDVUX1VzM1IiLAogICAgICAgICJrZXlQcmVmaXgiOiAiZ2hvc3Q6IiwKICAgICAg
    ICAidHRsIjogMzYwMCwKICAgICAgICAicmV1c2VDb25uZWN0aW9uIjogdHJ1ZSwKICAgIC
    AgICAicmVmcmVzaEFoZWFkRmFjdG9yIjogMC44LAogICAgICAgICJnZXRUaW1lb3V0TWls
    bGlzZWNvbmRzIjogNTAwMCwKICAgICAgICAic3RvcmVDb25maWciOiB7CiAgICAgICAgIC
    AicmV0cnlDb25uZWN0U2Vjb25kcyI6IDEwLAogICAgICAgICAgImxhenlDb25uZWN0Ijog
    dHJ1ZSwKICAgICAgICAgICJlbmFibGVPZmZsaW5lUXVldWUiOiB0cnVlLAogICAgICAgIC
    AgIm1heFJldHJpZXNQZXJSZXF1ZXN0IjogMwogICAgICAgIH0KICAgICAgfSwKICAgICAg
    ImdzY2FuIjogewogICAgICAgICJhZGFwdGVyIjogIlJlZGlzIiwKICAgICAgICAidHRsIj
    ogNDMyMDAsCiAgICAgICAgInJlZnJlc2hBaGVhZEZhY3RvciI6IDAuOSwKICAgICAgICAi
    a2V5UHJlZml4IjogImdob3N0OmdzY2FuLiIKICAgICAgfSwKICAgICAgImltYWdlU2l6ZX
    MiOiB7CiAgICAgICAgImFkYXB0ZXIiOiAiUmVkaXMiLAogICAgICAgICJ0dGwiOiA4NjQw
    MCwKICAgICAgICAicmVmcmVzaEFoZWFkRmFjdG9yIjogMC45NSwKICAgICAgICAia2V5UH
    JlZml4IjogImdob3N0OmltYWdlU2l6ZXMuIgogICAgICB9LAogICAgICAibGlua1JlZGly
    ZWN0c1B1YmxpYyI6IHsKICAgICAgICAiYWRhcHRlciI6ICJSZWRpcyIsCiAgICAgICAgIn
    R0bCI6IDcyMDAsCiAgICAgICAgInJlZnJlc2hBaGVhZEZhY3RvciI6IDAuOSwKICAgICAg
    ICAia2V5UHJlZml4IjogImdob3N0OmxpbmtSZWRpcmVjdHNQdWJsaWMuIgogICAgICB9LA
    ogICAgICAicG9zdHNQdWJsaWMiOiB7CiAgICAgICAgImFkYXB0ZXIiOiAiUmVkaXMiLAog
    ICAgICAgICJ0dGwiOiAxODAwLAogICAgICAgICJyZWZyZXNoQWhlYWRGYWN0b3IiOiAwLj
    csCiAgICAgICAgImtleVByZWZpeCI6ICJnaG9zdDpwb3N0c1B1YmxpYy4iCiAgICAgIH0s
    CiAgICAgICJzdGF0cyI6IHsKICAgICAgICAiYWRhcHRlciI6ICJSZWRpcyIsCiAgICAgIC
    AgInR0bCI6IDkwMCwKICAgICAgICAicmVmcmVzaEFoZWFkRmFjdG9yIjogMC44LAogICAg
    ICAgICJrZXlQcmVmaXgiOiAiZ2hvc3Q6c3RhdHMuIgogICAgICB9LAogICAgICAidGFnc1
    B1YmxpYyI6IHsKICAgICAgICAiYWRhcHRlciI6ICJSZWRpcyIsCiAgICAgICAgInR0bCI6
    IDM2MDAsCiAgICAgICAgInJlZnJlc2hBaGVhZEZhY3RvciI6IDAuOCwKICAgICAgICAia2
    V5UHJlZml4IjogImdob3N0OnRhZ3NQdWJsaWMuIgogICAgICB9CiAgICB9CiAgfSwKICAi
    aG9zdFNldHRpbmdzIjogewogICAgImxpbmtSZWRpcmVjdHNQdWJsaWNDYWNoZSI6IHsKIC
    AgICAgImVuYWJsZWQiOiB0cnVlCiAgICB9LAogICAgInBvc3RzUHVibGljQ2FjaGUiOiB7
    CiAgICAgICJlbmFibGVkIjogdHJ1ZQogICAgfSwKICAgICJzdGF0c0NhY2hlIjogewogIC
    AgICAiZW5hYmxlZCI6IHRydWUKICAgIH0sCiAgICAidGFnc1B1YmxpY0NhY2hlIjogewog
    ICAgICAiZW5hYmxlZCI6IHRydWUKICAgIH0KICB9LAogICJkYXRhYmFzZSI6IHsKICAgIC
    JjbGllbnQiOiAibXlzcWwiLAogICAgImNvbm5lY3Rpb24iOiB7CiAgICAgICJob3N0Ijog
    ImRiLW1hcmlhZGIuZ2hvc3Quc3ZjLmhvbWVsYWIuY2x1c3Rlci4iLAogICAgICAidXNlci
    I6ICJnaG9zdGRiIiwKICAgICAgInBhc3N3b3JkIjogImwwbkcuUGw0aW5fVDN4dF9zRWtS
    ZXRfcDRzNXdPUkQtRm9SXzZoMHNUX3VaM3IhIiwKICAgICAgImRhdGFiYXNlIjogImdob3
    N0LWRiIiwKICAgICAgInBvcnQiOiAiMzMwNiIKICAgIH0KICB9LAogICJwcm9jZXNzIjog
    ImxvY2FsIiwKICAicGF0aHMiOiB7CiAgICAiY29udGVudFBhdGgiOiAiL2hvbWUvbm9ucm
    9vdC9hcHAvZ2hvc3QvY29udGVudCIKICB9Cn0=
kind: Secret
metadata:
  labels:
    app: server-ghost
    platform: ghost
  name: server-ghost-config-c4td5f9fb9
  namespace: ghost
type: Opaque
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/port: "9121"
    prometheus.io/scrape: "true"
  labels:
    app: cache-valkey
    platform: ghost
  name: cache-valkey
  namespace: ghost
spec:
  clusterIP: None
  ports:
  - name: server
    port: 6379
    protocol: TCP
    targetPort: server
  - name: metrics
    port: 9121
    protocol: TCP
    targetPort: metrics
  selector:
    app: cache-valkey
    platform: ghost
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/port: "9104"
    prometheus.io/scrape: "true"
  labels:
    app: db-mariadb
    platform: ghost
  name: db-mariadb
  namespace: ghost
spec:
  clusterIP: None
  ports:
  - name: server
    port: 3306
    protocol: TCP
    targetPort: server
  - name: metrics
    port: 9104
    protocol: TCP
    targetPort: metrics
  selector:
    app: db-mariadb
    platform: ghost
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: server-ghost
    platform: ghost
  name: server-ghost
  namespace: ghost
spec:
  clusterIP: None
  ports:
  - name: server
    port: 2368
    protocol: TCP
    targetPort: server
  selector:
    app: server-ghost
    platform: ghost
  type: ClusterIP
---
apiVersion: v1
kind: PersistentVolume
metadata:
  labels:
    platform: ghost
  name: ghost-hdd-srv
spec:
  accessModes:
  - ReadWriteOnce
  capacity:
    storage: 9.3G
  local:
    path: /mnt/ghost-hdd/srv/k3smnt
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - k3sagent02
  persistentVolumeReclaimPolicy: Retain
  storageClassName: local-path
  volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolume
metadata:
  labels:
    platform: ghost
  name: ghost-ssd-cache
spec:
  accessModes:
  - ReadWriteOnce
  capacity:
    storage: 2.8G
  local:
    path: /mnt/ghost-ssd/cache/k3smnt
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - k3sagent02
  persistentVolumeReclaimPolicy: Retain
  storageClassName: local-path
  volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolume
metadata:
  labels:
    platform: ghost
  name: ghost-ssd-db
spec:
  accessModes:
  - ReadWriteOnce
  capacity:
    storage: 6.5G
  local:
    path: /mnt/ghost-ssd/db/k3smnt
  nodeAffinity:
    required:
      nodeSelectorTerms:
      - matchExpressions:
        - key: kubernetes.io/hostname
          operator: In
          values:
          - k3sagent02
  persistentVolumeReclaimPolicy: Retain
  storageClassName: local-path
  volumeMode: Filesystem
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  labels:
    app: cache-valkey
    platform: ghost
  name: cache-valkey
  namespace: ghost
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 2.8G
  storageClassName: local-path
  volumeName: ghost-ssd-cache
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  labels:
    app: db-mariadb
    platform: ghost
  name: db-mariadb
  namespace: ghost
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 6.5G
  storageClassName: local-path
  volumeName: ghost-ssd-db
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  labels:
    app: server-ghost
    platform: ghost
  name: server-ghost
  namespace: ghost
spec:
  accessModes:
  - ReadWriteOnce
  resources:
    requests:
      storage: 9.3G
  storageClassName: local-path
  volumeName: ghost-hdd-srv
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    app: cache-valkey
    platform: ghost
  name: cache-valkey
  namespace: ghost
spec:
  replicas: 1
  selector:
    matchLabels:
      app: cache-valkey
      platform: ghost
  serviceName: cache-valkey
  template:
    metadata:
      labels:
        app: cache-valkey
        platform: ghost
    spec:
      containers:
      - command:
        - valkey-server
        - /etc/valkey/valkey.conf
        image: valkey/valkey:9.0-alpine
        name: server
        ports:
        - containerPort: 6379
          name: server
        resources:
          requests:
            cpu: "0.5"
            memory: 64Mi
        volumeMounts:
        - mountPath: /data
          name: valkey-storage
        - mountPath: /etc/valkey/valkey.conf
          name: valkey-config
          readOnly: true
          subPath: valkey.conf
        - mountPath: /etc/valkey/users.acl
          name: valkey-acl
          readOnly: true
          subPath: users.acl
      - envFrom:
        - secretRef:
            name: cache-valkey-exporter-user-6mdd99ft8d
        image: oliver006/redis_exporter:v1.80.0-alpine
        name: metrics
        ports:
        - containerPort: 9121
          name: metrics
        resources:
          requests:
            cpu: "0.25"
            memory: 16Mi
      volumes:
      - name: valkey-storage
        persistentVolumeClaim:
          claimName: cache-valkey
      - configMap:
          defaultMode: 444
          items:
          - key: valkey.conf
            path: valkey.conf
          name: cache-valkey-config-c86dc4fh5d
        name: valkey-config
      - name: valkey-acl
        secret:
          defaultMode: 444
          items:
          - key: users.acl
            path: users.acl
          secretName: cache-valkey-acl-bcc5gh9d6g
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    app: db-mariadb
    platform: ghost
  name: db-mariadb
  namespace: ghost
spec:
  replicas: 1
  selector:
    matchLabels:
      app: db-mariadb
      platform: ghost
  serviceName: db-mariadb
  template:
    metadata:
      labels:
        app: db-mariadb
        platform: ghost
    spec:
      containers:
      - env:
        - name: MYSQL_DATABASE
          valueFrom:
            configMapKeyRef:
              key: ghost-db-name
              name: db-mariadb-config-t9c84t7h62
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              key: root-password
              name: db-mariadb-passwords-dtt9d6h2b9
        - name: MYSQL_USER
          valueFrom:
            configMapKeyRef:
              key: ghost-username
              name: db-mariadb-config-t9c84t7h62
        - name: MYSQL_PASSWORD
          valueFrom:
            secretKeyRef:
              key: ghost-user-password
              name: db-mariadb-passwords-dtt9d6h2b9
        - name: MARIADB_PROMETHEUS_EXPORTER_USERNAME
          valueFrom:
            configMapKeyRef:
              key: prometheus-exporter-username
              name: db-mariadb-config-t9c84t7h62
        - name: MARIADB_PROMETHEUS_EXPORTER_PASSWORD
          valueFrom:
            secretKeyRef:
              key: prometheus-exporter-password
              name: db-mariadb-passwords-dtt9d6h2b9
        image: mariadb:11.8-noble
        name: server
        ports:
        - containerPort: 3306
          name: server
        resources:
          requests:
            cpu: "0.75"
            memory: 256Mi
        volumeMounts:
        - mountPath: /etc/mysql/my.cnf
          name: mariadb-config
          readOnly: true
          subPath: my.cnf
        - mountPath: /docker-entrypoint-initdb.d/initdb.sh
          name: mariadb-config
          readOnly: true
          subPath: initdb.sh
        - mountPath: /var/lib/mysql
          name: mariadb-storage
      - args:
        - --collect.auto_increment.columns
        - --collect.binlog_size
        - --collect.engine_innodb_status
        - --collect.global_status
        - --collect.global_variables
        - --collect.info_schema.clientstats
        - --collect.info_schema.innodb_metrics
        - --collect.info_schema.innodb_tablespaces
        - --collect.info_schema.innodb_cmp
        - --collect.info_schema.innodb_cmpmem
        - --collect.info_schema.processlist
        - --collect.info_schema.query_response_time
        - --collect.info_schema.tables
        - --collect.info_schema.tablestats
        - --collect.info_schema.schemastats
        - --collect.info_schema.userstats
        - --collect.perf_schema.eventsstatements
        - --collect.perf_schema.eventsstatementssum
        - --collect.perf_schema.eventswaits
        - --collect.perf_schema.file_events
        - --collect.perf_schema.file_instances
        - --collect.perf_schema.indexiowaits
        - --collect.perf_schema.tableiowaits
        - --collect.perf_schema.tablelocks
        - --collect.perf_schema.replication_group_member_stats
        - --collect.perf_schema.replication_applier_status_by_worker
        - --collect.slave_hosts
        - --mysqld.address=localhost:3306
        - --mysqld.username=$(MARIADB_PROMETHEUS_EXPORTER_USERNAME)
        env:
        - name: MARIADB_PROMETHEUS_EXPORTER_USERNAME
          valueFrom:
            configMapKeyRef:
              key: prometheus-exporter-username
              name: db-mariadb-config-t9c84t7h62
        - name: MYSQLD_EXPORTER_PASSWORD
          valueFrom:
            secretKeyRef:
              key: prometheus-exporter-password
              name: db-mariadb-passwords-dtt9d6h2b9
        image: prom/mysqld-exporter:v0.18.0
        name: metrics
        ports:
        - containerPort: 9104
          name: metrics
        resources:
          requests:
            cpu: "0.25"
            memory: 16Mi
      volumes:
      - name: mariadb-storage
        persistentVolumeClaim:
          claimName: db-mariadb
      - configMap:
          defaultMode: 444
          items:
          - key: initdb.sh
            path: initdb.sh
          - key: my.cnf
            path: my.cnf
          name: db-mariadb-config-t9c84t7h62
        name: mariadb-config
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    app: server-ghost
    platform: ghost
  name: server-ghost
  namespace: ghost
spec:
  replicas: 1
  selector:
    matchLabels:
      app: server-ghost
      platform: ghost
  serviceName: server-ghost
  template:
    metadata:
      labels:
        app: server-ghost
        platform: ghost
    spec:
      automountServiceAccountToken: false
      containers:
      - envFrom:
        - configMapRef:
            name: server-ghost-env-vars-9ggkgtdt7b
        image: ghcr.io/sredevopsorg/ghost-on-kubernetes:main
        livenessProbe:
          failureThreshold: 1
          httpGet:
            httpHeaders:
            - name: X-Forwarded-Proto
              value: https
            - name: Host
              value: ghost.homelab.cloud
            path: /ghost/api/admin/site/
            port: server
          initialDelaySeconds: 30
          periodSeconds: 300
          successThreshold: 1
          timeoutSeconds: 3
        name: server
        ports:
        - containerPort: 2368
          name: server
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            httpHeaders:
            - name: X-Forwarded-Proto
              value: https
            - name: Host
              value: ghost.homelab.cloud
            path: /ghost/api/admin/site/
            port: server
          initialDelaySeconds: 10
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 3
        resources:
          requests:
            cpu: 100m
            memory: 256Mi
        securityContext:
          allowPrivilegeEscalation: false
          readOnlyRootFilesystem: true
          runAsNonRoot: true
          runAsUser: 65532
        volumeMounts:
        - mountPath: /home/nonroot/app/ghost/content
          name: ghost-storage
        - mountPath: /home/nonroot/app/ghost/config.production.json
          name: ghost-config
          readOnly: true
          subPath: config.production.json
        - mountPath: /tmp
          name: tmp
      hostAliases:
      - hostnames:
        - ghost.homelab.cloud
        ip: 10.7.0.1
      initContainers:
      - command:
        - /bin/sh
        - -c
        - |
          set -e

          export DIRS='files logs apps themes data public settings images media'
          echo 'Check if base dirs exists, if not, create them'
          echo "Directories to check: $DIRS"
          for dir in $DIRS; do
            if [ ! -d $GHOST_CONTENT/$dir ]; then
              echo "Creating $GHOST_CONTENT/$dir directory"
              mkdir -pv $GHOST_CONTENT/$dir || echo "Error creating $GHOST_CONTENT/$dir directory"
            fi
            chown -Rfv 65532:65532 $GHOST_CONTENT/$dir && echo "chown ok on $dir" || echo "Error changing ownership of $GHOST_CONTENT/$dir directory"
          done
          exit 0
        env:
        - name: GHOST_CONTENT
          valueFrom:
            configMapKeyRef:
              key: GHOST_CONTENT
              name: server-ghost-env-vars-9ggkgtdt7b
        image: docker.io/busybox:stable-musl
        name: permissions-fix
        resources:
          requests:
            cpu: 100m
            memory: 128Mi
        securityContext:
          allowPrivilegeEscalation: false
          readOnlyRootFilesystem: true
        volumeMounts:
        - mountPath: /home/nonroot/app/ghost/content
          name: ghost-storage
          readOnly: false
      volumes:
      - name: ghost-storage
        persistentVolumeClaim:
          claimName: server-ghost
      - name: ghost-config
        secret:
          defaultMode: 420
          items:
          - key: config.production.json
            path: config.production.json
          secretName: server-ghost-config-c4td5f9fb9
      - emptyDir:
          sizeLimit: 64Mi
        name: tmp
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  labels:
    platform: ghost
  name: ghost.homelab.cloud-tls
  namespace: ghost
spec:
  dnsNames:
  - ghost.homelab.cloud
  duration: 2190h
  isCA: false
  issuerRef:
    group: cert-manager.io
    kind: ClusterIssuer
    name: homelab.cloud-intm-ca01-issuer
  privateKey:
    algorithm: ECDSA
    encoding: PKCS8
    rotationPolicy: Always
    size: 521
  renewBefore: 168h
  secretName: ghost.homelab.cloud-tls
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  labels:
    platform: ghost
  name: ghost.homelab.cloud
  namespace: ghost
spec:
  entryPoints:
  - websecure
  routes:
  - kind: Rule
    match: Host(`ghost.homelab.cloud`)
    services:
    - kind: Service
      name: server-ghost
      passHostHeader: true
      port: server
      scheme: http
  tls:
    secretName: ghost.homelab.cloud-tls

    The most important thing here is to verify that the resources that get their names modified by Kustomize with an autogenerated suffix, in particular ConfigMaps and Secrets, are called by their modified name wherever they are used in this setup.


    Kustomize does not change the names if they have been put in non-standard Kubernetes parameters
    It might also be possible that Kustomize may not even touch values in certain particular standard ones.

    On the other hand, notice how Kustomize has grouped all the resources together according to their kind and ordered them alphabetically by metadata.name. Also see how the ghost namespace has been set in all resources except in the PersistentVolume ones because those in particular are not namespaced.

Deploying the main Kustomize project in the cluster

If you are satisfied with the YAML output of your Ghost Kustomize project, proceed to deploy Ghost in your Kubernetes cluster:

  1. Use the kubectl command to apply the Ghost platform Kustomize project in your cluster:

    $ kubectl apply -k $HOME/k8sprjs/ghost

  2. Right after applying the Kustomize project, check how the deployment is going for the components of your Ghost platform:

    $ kubectl -n ghost get pv,pvc,cm,secret,deployment,replicaset,statefulset,pod,svc -o wide

    Below you can see a possible output from the kubectl command above:

    NAME                               CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE   VOLUMEMODE
persistentvolume/ghost-hdd-srv     9300M      RWO            Retain           Bound    ghost/server-ghost   local-path     <unset>                          11s   Filesystem
persistentvolume/ghost-ssd-cache   2800M      RWO            Retain           Bound    ghost/cache-valkey   local-path     <unset>                          11s   Filesystem
persistentvolume/ghost-ssd-db      6500M      RWO            Retain           Bound    ghost/db-mariadb     local-path     <unset>                          11s   Filesystem

NAME                                 STATUS   VOLUME            CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE   VOLUMEMODE
persistentvolumeclaim/cache-valkey   Bound    ghost-ssd-cache   2800M      RWO            local-path     <unset>                 12s   Filesystem
persistentvolumeclaim/db-mariadb     Bound    ghost-ssd-db      6500M      RWO            local-path     <unset>                 12s   Filesystem
persistentvolumeclaim/server-ghost   Bound    ghost-hdd-srv     9300M      RWO            local-path     <unset>                 12s   Filesystem

NAME                                         DATA   AGE
configmap/cache-valkey-config-c86dc4fh5d     1      14s
configmap/db-mariadb-config-t9c84t7h62       5      14s
configmap/kube-root-ca.crt                   1      14s
configmap/server-ghost-env-vars-9ggkgtdt7b   3      14s

NAME                                           TYPE                DATA   AGE
secret/cache-valkey-acl-k2bm2h5fgk             Opaque              1      14s
secret/cache-valkey-exporter-user-4thcmd49m2   Opaque              2      14s
secret/db-mariadb-passwords-8g2hdgch72         Opaque              3      14s
secret/ghost.homelab.cloud-tls                 kubernetes.io/tls   3      10s
secret/server-ghost-config-k6b85fg6bb          Opaque              1      14s

NAME                            READY   AGE   CONTAINERS       IMAGES
statefulset.apps/cache-valkey   1/1     14s   server,metrics   valkey/valkey:9.0-alpine,oliver006/redis_exporter:v1.80.0-alpine
statefulset.apps/db-mariadb     1/1     13s   server,metrics   mariadb:11.8-noble,prom/mysqld-exporter:v0.18.0
statefulset.apps/server-ghost   0/1     13s   server           ghcr.io/sredevopsorg/ghost-on-kubernetes:main

NAME                 READY   STATUS    RESTARTS   AGE   IP            NODE         NOMINATED NODE   READINESS GATES
pod/cache-valkey-0   2/2     Running   0          13s   10.42.1.193   k3sagent02   <none>           <none>
pod/db-mariadb-0     2/2     Running   0          13s   10.42.1.195   k3sagent02   <none>           <none>
pod/server-ghost-0   0/1     Running   0          12s   10.42.1.194   k3sagent02   <none>           <none>

NAME                   TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)             AGE   SELECTOR
service/cache-valkey   ClusterIP   None         <none>        6379/TCP,9121/TCP   14s   app=cache-valkey,platform=ghost
service/db-mariadb     ClusterIP   None         <none>        3306/TCP,9104/TCP   14s   app=db-mariadb,platform=ghost
service/server-ghost   ClusterIP   None         <none>        2368/TCP            14s   app=server-ghost,platform=ghost

    There are a number of details about this Ghost platform deployment you must realize, based on this kubectl output:

    • The components shown first are the persistent volumes with all their main details. Notice how the values under the CAPACITY column are in megabytes (M), although those sizes were specified in gigabytes (G) in their YAML manifests. Also see how there is no information about to which node are the volumes associated to. The status Bound means that the volume has been claimed, so it is not free at the moment.

    • Right below the persistent volumes you got the persistent volume claims, and all of them appear with Bound status and with the name of the VOLUME they are bound to. And, as it happened with the PVs, the PVCs’ requested CAPACITY is shown in megabytes (M) rather than gigabytes (G).

    • All the config maps declared in this Ghost project are listed next, with their corresponding Kubernetes-autogenerated suffix attached to their names. Among them appears a kube-root-ca.crt, which is a public TLS CA certificate used internally to verify the identity of the cluster’s Kubernetes API server.

    • Right below the config maps appear all the secrets declared in the Ghost project, also with autogenerated suffixes appended to their names, except for the secret related to the Ghost platform TLS certificate.

    • The StatefulSets appear with their names as they are in their YAML descriptions, next to other values that inform you of the pods they have running (READY column) and a few other related details.

      In the sample output above, the server-ghost StatefulSet is the one still not ready because the only pod it produces is not either.

    • The pods are listed with the number of containers they have READY. In the particular case of Ghost server’s pod (pod/server-ghost-0), notice that its only container is still not ready but the pod itself has a Running status nevertheless. This is because the pod is really running but its readiness probe informs that it is not ready yet.

      See how all pods have a cluster IP assigned, and how all of them are running in the k3sagent02 K3s node of the cluster. Remember that this is due to the affinity configuration declared in their corresponding persistent volumes.

      Also be aware of a particularity about how pods are named automatically by Kubernetes’s control plane:

      • Pods from StatefulSets get their names from their parent stateful set, plus an integer number as a suffix. When a stateful set requires to run more than one replica, each generated pod will have a different but consecutive number. Check more about stateful sets behaviour in the official Kubernetes documentation.

      • Pods from regular Deployments get a unique name from their parent replica set combined with an autogenerated suffix string (like -68984788b7-npjz9).

    • The last components listed are Services, and you can see them listed all as headless (no cluster IP assigned) ones with no external IP whatsoever. Also worth mentioning the list of PORT(S) each of them have open, and how the labels applied to them appear in the SELECTOR column.

Start using Ghost

When the pod for the Ghost server is listed as READY, browse to your Ghost platform (found in https://ghost.homelab.cloud for this guide) to see the homepage of its basic default site:

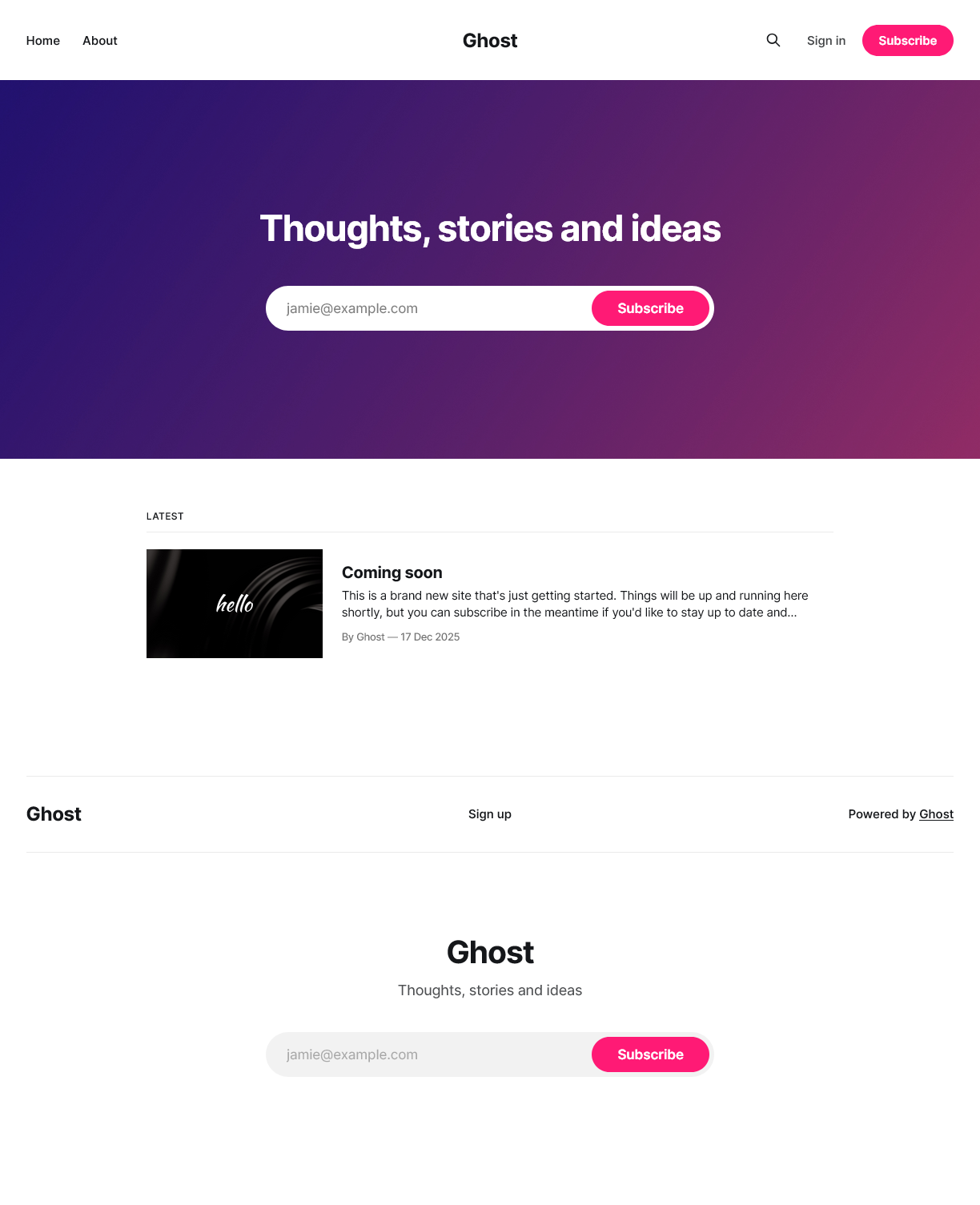

Ghost default site homepage
Ghost default site homepage

This is not really “your” site yet, it is just some default content for Ghost to serve initially.

Important

A Ghost server instance only supports one site
In other words, you need a different Ghost instance for each new site you want to have.

You still need to explicitly setup your site, and register your first staff user:

  1. Browse into the /ghost subpath in your Ghost server. Ghost redirecteds you to a setup form where you can give a title to your site and configure your first staff user. In this guide, this setup page’s full URL would be https://ghost.homelab.cloud/ghost:

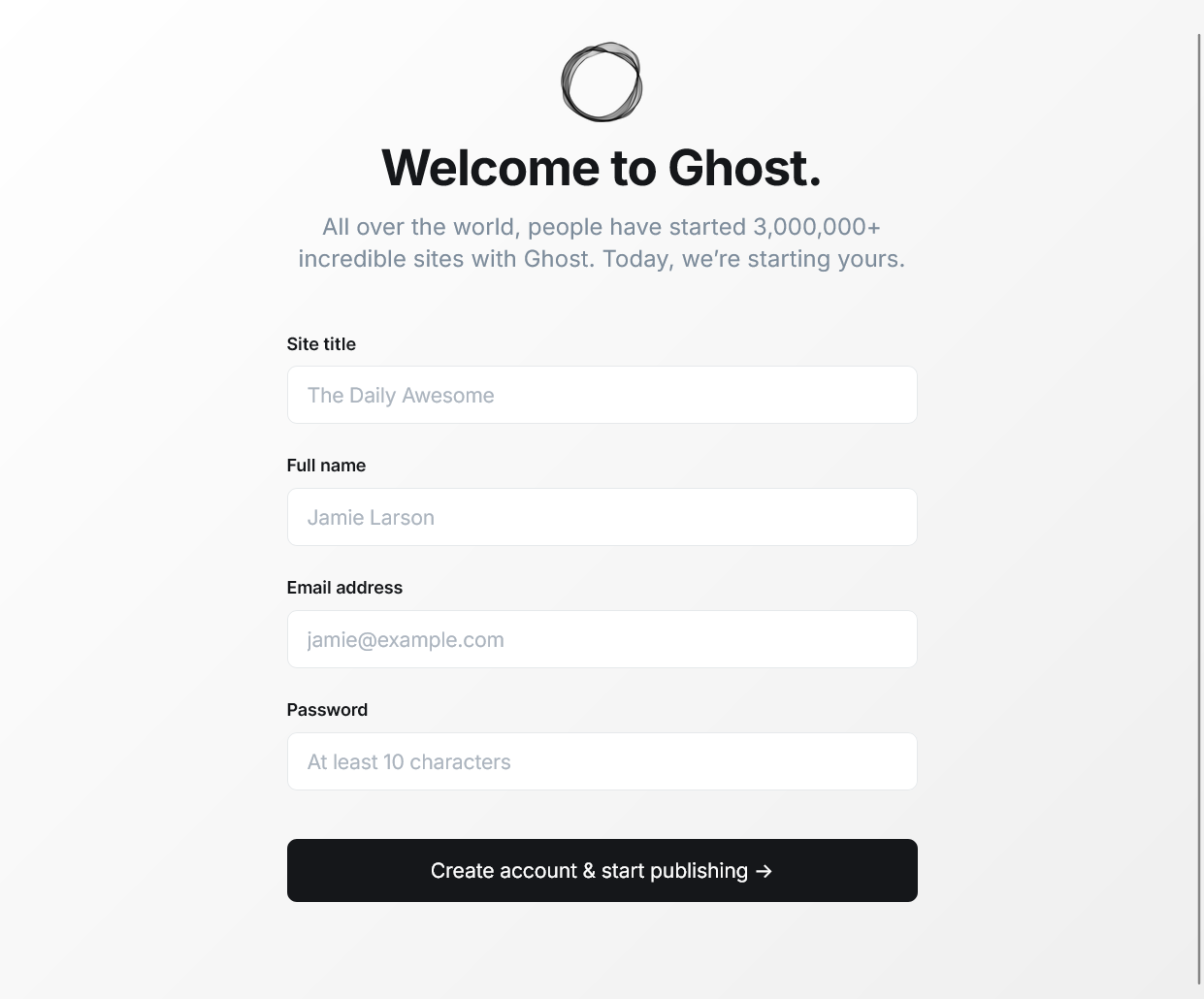

    Ghost site setup form
    Ghost site setup form

  2. After pressing the “Create account & start publishing” button in the previous form, you get directly signed in as that new staff user in your Ghost site’s administration dashboard:

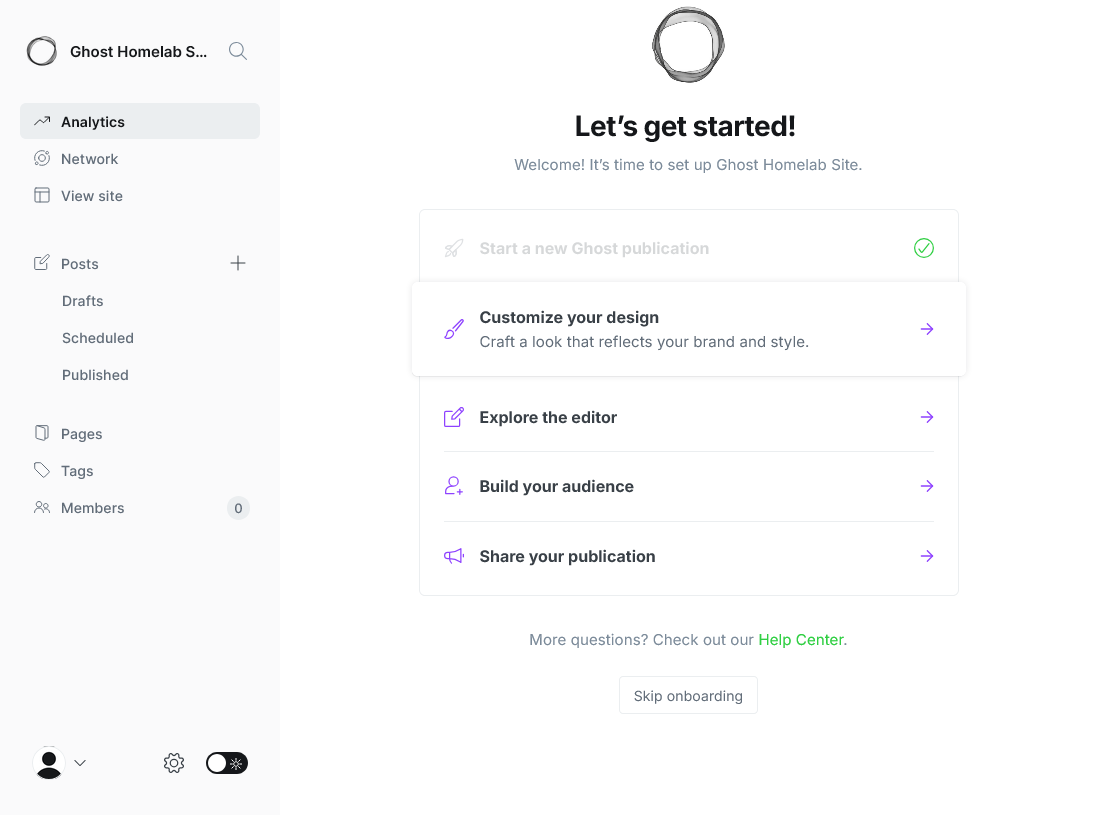

    Onboarding in Ghost site administration area
    Onboarding in Ghost site administration area

    You are welcomed by the onboarding Let's get started! page that helps you start working with your Ghost site. Be aware that Ghost makes your first staff user the owner of the site automatically.

    Also, you will receive a welcome email in the email address of your staff user:

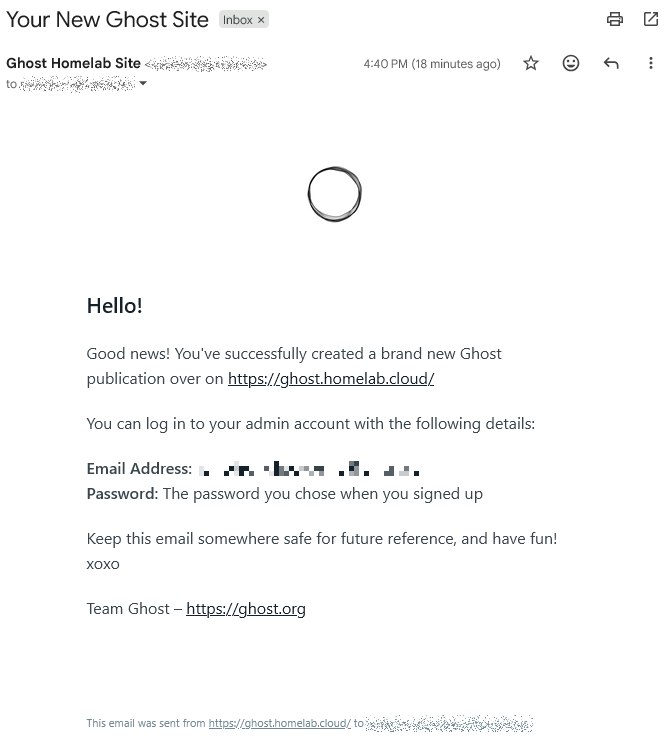

    Ghost new site welcome email
    Ghost new site welcome email

  3. With the site initialized and your first staff user registered, everytime you need to sign back into your Ghost site, remember to browse to the “hidden” administration subpath /ghost. Ghost redirects you directly to the “Sign in” page for staff users:

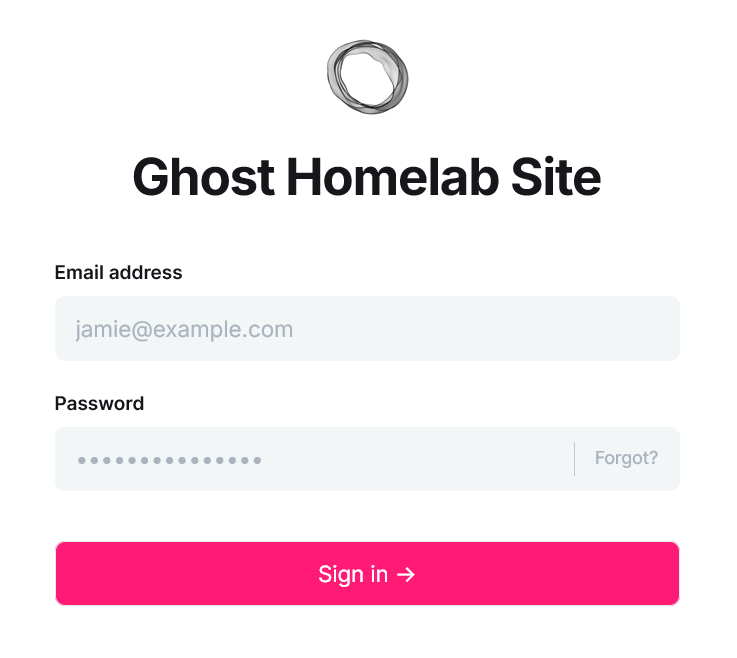

    Ghost site sign in form for staff users
    Ghost site sign in form for staff users

    The full subpath of this page is /ghost/#/signin. Ghost redirects you here automatically when browsing to the /ghost subpath if you do not have a staff user session active in the site yet.

    Important

    Staff users and members are different types of accounts in Ghost
    While staff users take care of the management of the site and its contents, members are just people subscribed to the site to receive its newsletters.

    This means that the “Sign in” and “Sign up” links offered in the site’s homepage are meant only for members, while staff users must sign in through the /ghost subpath.

To learn more about what you can do with a Ghost site, take a look to the official Ghost manual.

Security considerations in Ghost

Once you have your Ghost platform running, consider the following security concerns:

  1. Enable the two-factor authentication of your owner staff user:

    • Avoid using it as a regular staff user for publishing content in the site.

  2. Create staff users with the appropiate privilege level:

    • Ghost offers four roles with different privilege levels. From lowest to highest privilege level, these roles are: contributor, author, editor and administrator. Always try to assign the lowest possible privilege level to each staff user.

    • Do not forget to enable the two-factor authentication to all staff users registered in your site.

Ghost platform’s Kustomize project attached to this guide

You can find the Kustomize project for this Ghost platform deployment in the following attached folder.

Relevant system paths

Folders in kubectl client system

  • $HOME/k8sprjs/ghost
  • $HOME/k8sprjs/ghost/components
  • $HOME/k8sprjs/ghost/components/cache-valkey
  • $HOME/k8sprjs/ghost/components/db-mariadb
  • $HOME/k8sprjs/ghost/components/server-ghost
  • $HOME/k8sprjs/ghost/resources

Files in kubectl client system

  • $HOME/k8sprjs/ghost/kustomization.yaml
  • $HOME/k8sprjs/ghost/resources/ghost-hdd-srv.persistentvolume.yaml
  • $HOME/k8sprjs/ghost/resources/ghost-ssd-cache.persistentvolume.yaml
  • $HOME/k8sprjs/ghost/resources/ghost-ssd-db.persistentvolume.yaml
  • $HOME/k8sprjs/ghost/resources/ghost.homelab.cloud-tls.certificate.cert-manager.yaml
  • $HOME/k8sprjs/ghost/resources/ghost.homelab.cloud.ingressroute.traefik.yaml
  • $HOME/k8sprjs/ghost/resources/ghost.namespace.yaml

References

Ghost

SREDevOps.org

Ghost serverForgejo
