Deploying the Headlamp dashboard

Headlamp is an alternative to the Kubernetes Dashboard

To monitor what is going on in your K3s cluster in a more visual manner, Kubernetes offers its own native web-based dashboard. That one is fine, but there is an interesting alternative dashboard called Headlamp also worth trying out.

Warning

Ensure having the metrics-server service running in your cluster first!
To be able to show stats from your K3s cluster, Headlamp (like the Kubernetes Dashboard) requires having the metrics-server service already running in your cluster.

Components required for deploying Headlamp

To deploy Headlamp in your homelab cluster, you need:

A service account with the cluster administrator role.
A TLS certificate to secure communications with Headlamp.
An HTTPS ingress to access Headlamp that uses the previously mentioned TLS certificate.

Kustomize project’s folder structure

In your kubectl client system, create the folder structure for the Headlamp Kustomize project:

$ mkdir -p $HOME/k8sprjs/headlamp/resources

Headlamp ServiceAccount

Prepare a ServiceAccount for Headlamp like this:

Create a headlamp-admin.serviceaccount.yaml file under the resources folder:

$ touch $HOME/k8sprjs/headlamp/resources/headlamp-admin.serviceaccount.yaml

Declare the headlamp-admin service account in headlamp-admin.serviceaccount.yaml:
```
# Headlamp administrator user
apiVersion: v1
kind: ServiceAccount

metadata:
  name: headlamp-admin
```
This service account will act as the administrator user for your Headlamp instance:
- The name headlamp-admin is the one expected in the official Headlamp installation. Its deployment manifest already points to a secret token for a service account called headlamp-admin.
- This declaration only creates the headlamp-admin service account without any special privileges in the cluster. The account needs to be bound to a cluster role to be authorized to access your K3s cluster information, something you will declare in the next section.
Important
Service accounts are not meant for regular users
For Kubernetes, user accounts are for humans and service accounts are for application processes. Still, Headlamp’s official installation documentation explicitly recommends (at the time of writing this) using a service account.

Headlamp ClusterRoleBinding

To bind the headlamp-admin service account with the required administrator role, you need a ClusterRoleBinding object:

Generate a new cluster-admin-users.clusterrolebinding.yaml file under resources:

$ touch $HOME/k8sprjs/headlamp/resources/cluster-admin-users.clusterrolebinding.yaml

In cluster-admin-users.clusterrolebinding.yaml, bind the headlamp-admin with the cluster-admin cluster role:
```
# Administrator cluster role bindings
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding

metadata:
  name: cluster-admin-users
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: headlamp-admin
  namespace: kube-system
```
With this declaration, you make the headlamp-admin account an administrator of your cluster under the kube-system namespace:
- The roleRef attribute specifies that the cluster role to be bound is cluster-admin, which is a built-in role in Kubernetes.
- In subjects you list all the users you want bounded to the role indicated in roleRef. In this case, there is only the headlamp-admin service account.

Headlamp TLS certificate

To encrypt the client communications with Headlamp you need a TLS certificate managed with the cert-manager you deployed in a previous chapter:

Create the file headlamp.homelab.cloud-tls.certificate.cert-manager.yaml in the resources folder:

$ touch $HOME/k8sprjs/headlamp/resources/headlamp.homelab.cloud-tls.certificate.cert-manager.yaml

Declare a self-signed “leaf” certificate in headlamp.homelab.cloud-tls.certificate.cert-manager.yaml:
```
# TLS certificate for Headlamp
apiVersion: cert-manager.io/v1
kind: Certificate

metadata:
  name: headlamp.homelab.cloud-tls
spec:
  isCA: false
  secretName: headlamp.homelab.cloud-tls
  duration: 2190h # 3 months
  renewBefore: 168h # Certificates must be renewed some time before they expire (7 days)
  dnsNames:
  - headlamp.homelab.cloud
  privateKey:
    algorithm: ECDSA
    size: 521
    encoding: PKCS8
    rotationPolicy: Always
  issuerRef:
    name: homelab.cloud-intm-ca01-issuer
    kind: ClusterIssuer
    group: cert-manager.io
```
This certificate is similar to the ones created for the self-signed CA issuers already explained in the chapter about deploying cert-manager, except for:
- The spec.isCA parameter set to false makes this certificate a “leaf” one that cannot be used to issue other certificates.
- There is no spec.commonName because the official cert-manager documentation recommends setting this attribute only in CA certificates, and leaving it unset in “leaf” certificates.
- Its duration and renewBefore values are half of the ones set to the certificate of the intermediate CA issuing this Headlamp certificate.
- The list in spec.dnsNames specifies which domains this certificate corresponds to.
- The spec.issuerRef invokes the intermediate CA already available in your cluster as issuer of this Headlamp certificate.

Headlamp IngressRoute

To enable ingress access into Headlamp, use a Traefik IngressRoute:

Create the headlamp.ingressroute.traefik.yaml file under the resources folder:

$ touch $HOME/k8sprjs/headlamp/resources/headlamp.ingressroute.traefik.yaml

In resources/headlamp.ingressroute.traefik.yaml, specify the Traefik IngressRoute resource for accessing Headlamp through HTTPS:
```
# HTTPS ingress for Headlamp
apiVersion: traefik.io/v1alpha1
kind: IngressRoute

metadata:
  name: headlamp
spec:
  entryPoints:
  - websecure
  routes:
  - match: Host(`headlamp.homelab.cloud`)
    kind: Rule
    services:
    - name: headlamp
      kind: Service
      port: 80
  tls:
    secretName: headlamp.homelab.cloud-tls
```
Details you should pay attention to in this Traefik IngressRoute declaration are:
- The spec.entryPoints is set to websecure only, which corresponds to the Traefik service’s HTTPS port.
- The spec.routes.match enables the URL to reach Headlamp through Traefik.
  Note
  The domain name must be enabled in your local network
  Your equivalent of the hostname seen in the YAML above will not be reachable unless you enable it from a DNS service (your local network’s router could provide it), or specify it in the hosts file of the clients you want to access from.
- The spec.routes.services only has an entry for the Headlamp service, linking it to this IngressRoute.
- The spec.tls.secretName points to the secret associated to the Headlamp certificate declared in the previous step. This enables the TLS termination at the ingress level, while the communication with Headlamp will still be done in HTTP.

Kustomize manifest for the Headlamp project

With all the required resources declared, put them all together with the manifest that deploys Headlamp itself in the Kustomize YAML of this project:

Create the kustomization.yaml file for the Kustomize project:
```
$ touch $HOME/k8sprjs/headlamp/kustomization.yaml
```
Put in the kustomization.yaml file the following Kustomization manifest:
```
# Headlamp setup
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: kube-system

resources:
- resources/headlamp-admin.serviceaccount.yaml
- resources/cluster-admin-users.clusterrolebinding.yaml
- resources/headlamp.homelab.cloud-tls.certificate.cert-manager.yaml
- resources/headlamp.ingressroute.traefik.yaml
- https://raw.githubusercontent.com/kubernetes-sigs/headlamp/main/kubernetes-headlamp.yaml
```
The namespace declaration sets the kube-system namespace to all the namespaced resources (the ClusterRoleBinding object is not namespaced since it has a cluster-wide nature) declared in this Kustomize project, and also to their invocations within standard Kubernetes objects (not in custom ones). The kube-system namespace is where the Headlamp service is going to be deployed. It is important that all namespaced resources are in the same namespace as Headlamp. In particular, the service account must be in the same namespace as Headlamp to authorize this service to access the cluster information it needs to work.

Validating the Kustomize YAML output

You may want to take a look at how the resources you declared appear in the Kustomize output before deploying:

Execute the kubectl kustomize command on the Headlamp Kustomize project main folder, redirected to less (or to your favorite text editor):
```
$ kubectl kustomize $HOME/k8sprjs/headlamp | less
```

Compare your YAML output with this one:

apiVersion: v1
kind: ServiceAccount
metadata:
  name: headlamp-admin
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: cluster-admin-users
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: headlamp-admin
  namespace: kube-system
---
apiVersion: v1
kind: Secret
metadata:
  annotations:
    kubernetes.io/service-account.name: headlamp-admin
  name: headlamp-admin
  namespace: kube-system
type: kubernetes.io/service-account-token
---
apiVersion: v1
kind: Service
metadata:
  name: headlamp
  namespace: kube-system
spec:
  ports:
  - port: 80
    targetPort: 4466
  selector:
    k8s-app: headlamp
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: headlamp
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s-app: headlamp
  template:
    metadata:
      labels:
        k8s-app: headlamp
    spec:
      containers:
      - args:
        - -in-cluster
        - -plugins-dir=/headlamp/plugins
        env:
        - name: HEADLAMP_CONFIG_TRACING_ENABLED
          value: "true"
        - name: HEADLAMP_CONFIG_METRICS_ENABLED
          value: "true"
        - name: HEADLAMP_CONFIG_OTLP_ENDPOINT
          value: otel-collector:4317
        - name: HEADLAMP_CONFIG_SERVICE_NAME
          value: headlamp
        - name: HEADLAMP_CONFIG_SERVICE_VERSION
          value: latest
        image: ghcr.io/headlamp-k8s/headlamp:latest
        livenessProbe:
          httpGet:
            path: /
            port: 4466
            scheme: HTTP
          initialDelaySeconds: 30
          timeoutSeconds: 30
        name: headlamp
        ports:
        - containerPort: 4466
          name: http
        - containerPort: 9090
          name: metrics
        readinessProbe:
          httpGet:
            path: /
            port: 4466
            scheme: HTTP
          initialDelaySeconds: 30
          timeoutSeconds: 30
      nodeSelector:
        kubernetes.io/os: linux
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: headlamp.homelab.cloud-tls
  namespace: kube-system
spec:
  dnsNames:
  - headlamp.homelab.cloud
  duration: 2190h
  isCA: false
  issuerRef:
    group: cert-manager.io
    kind: ClusterIssuer
    name: homelab.cloud-intm-ca01-issuer
  privateKey:
    algorithm: ECDSA
    encoding: PKCS8
    rotationPolicy: Always
    size: 521
  renewBefore: 168h
  secretName: headlamp.homelab.cloud-tls
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: headlamp
  namespace: kube-system
spec:
  entryPoints:
  - websecure
  routes:
  - kind: Rule
    match: Host(`headlamp.homelab.cloud`)
    services:
    - kind: Service
      name: headlamp
      port: 80
  tls:
    secretName: headlamp.homelab.cloud-tls

In this output you can see the combination of the resources you declared (ServiceAccount, ClusterRoleBinding, TLS Certificate, IngressRoute) with the objects included in the official Headlamp manifest:

Secret
The main thing to notice in this object is that it expects to have available a ServiceAccount named headlamp-admin, right the one you declared.
Service
Is a regular Service that has the particularity of exposing the port 80 instead of the 4466 used by Headlamp. This does not matter much since the Traefik IngressRoute is the one making the ingress go through an HTTPS connection that uses the 443 port.
Deployment
A Deployment resource is the standard object for deploying pods in Kubernetes. In this case, it configures a pod for Headlamp with a single container:
- spec.replicas
  Is set to make this deployment produce only one Headlamp pod.
- spec.template.spec.containers
  Under this block there are a few details worth highlighting:
  - args
    Specifies a couple of parameters that affect the behavior of the Headlamp server binary. The -in-cluster option indicates Headlamp that is running in the same cluster it is monitoring. The -plugin-dir parameter just indicates the path within the pod where Headlamp can find its plugins.
  - env
    These are environment variables that get imported in the Headlamp’s pod, affecting the behavior of the Headlamp server.
    Note
    These variables are not explained in the official Headlamp documentation
    At the time of writing this note, they are not found even by the search tool of the Headlamp documentation site.
  - image
    Important to notice that it points to the latest image of the Headlamp container. Every time Headlamp gets deployed in your cluster, it will be its last available version.
  - livenessProbe and readinessProbe
    Probes that regularly check if the Headlamp server is running properly and can respond to HTTP requests in the 4466 port.
  - name
    Just the name given to the container in the deployment.
  - ports
    Here notice that there are two ports declared:
    - http where Headlamp is served.
    - metrics which returns the Prometheus-compatible metrics of this Headlamp instance.
- spec.template.spec.nodeSelector
  This selector ensures that the pod only deploys in nodes that are running on a Linux system, like the Debian OS you have running on each of your K3s cluster nodes.

In the upcoming chapters you will see again all these and many other parameters when you prepare the deployments of Ghost, Forgejo and the monitoring stack.

Deploying Headlamp

After reviewing the Headlamp Kustomize project’s output, you can apply its manifest in your cluster:

Apply the Kustomize project to your cluster:
```
$ kubectl apply -k $HOME/k8sprjs/headlamp
```

Give Headlamp around a minute to boot up, then verify that its corresponding pod and service are running under the kube-system namespace:

$ kubectl get pods,svc -n kube-system | grep headlamp
pod/headlamp-747b5f4d5-tntzn                  1/1     Running     0          53s
service/headlamp         ClusterIP      10.43.27.248   <none>        80/TCP                       55s

Getting the administrator user’s service account token

To log in Headlamp with the headlamp-admin user you created in its deployment, you need to authenticate with a service account token associated to that user. This is a secret token you can create with kubectl:

$ kubectl -n kube-system create token headlamp-admin --duration=8760h
eyJhbGciOiJSUzI1NiIsImtpZCI6ImtxNzh0bmk3cDAzVU4zXzFnMVgwZXVSR3c0U1FnNVZ3OUtSdDBSTkw2WmsifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXFiMnQ1Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI4MjU4Mjc4ZC02YjBmLTQwZDItOTI1Yy1kMzEwMmY3MTkxYzQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.PG-4qfeT3C6vFfwhdGDoXVmjDEU7TJDTftcmIa2kQO0HtWM8ZN45wDGk4ZSWUR5mO5HlXpYORiGkKHq6GNPFRr_qCo4tKIONyZbgXtV98P6OpOIrfDTJCwxjFf0aqOmEs1N3BqViFs3MgBRCLElx98rD6AXehdxPADXlAksnaypKKx6q1WFgNmOTHfC9WrpQzX-qoo8CbRRCuSyTagm3qkpa5hV5RjyKjE7IaOqQGwFOSbTqMy6eghTYSufC-uUxcOWw3OPVa9QzINOn9_tioxj7tH7rpw_eOHzUW_-Cr_HE89DygnuZAqQEsWxBLfYcrBKtnMhxn49E22SyCaJldA

Be aware that:

This service account token is associated to the headlamp-admin service account existing in the kube-system namespace.
The command outputs your headlamp-admin’s secret token string directly in your shell. Remember to copy and save it somewhere safe such as a password manager.
The --duration=8760h makes this token last for 365 days, although you may prefer it to expire sooner for security reasons. By default, a service account token expires after one hour, but it can also expire when the associated pod is deleted. By setting a specific duration, the token will last for the time period set with --duration, regardless of what happens to the pod.
Important
Use the kubectl create token command again for refreshing the service account token
Whenever your current secret token for your headlamp-admin service account becomes invalid, generate a new service account token with the same kubectl command.

Testing Headlamp

Now that you have Headlamp deployed, you can test it if you have enabled its DNS name or hostname in your LAN. In this guide, Headlamp has the hostname headlamp.homelab.cloud:

Note

Associate the Headlamp’s DNS name or hostname to your Traefik service’s IP
Since Headlamp is served through Traefik, you have to associate its DNS name to the Traefik service’s IP. In your client system’s hosts file, you would do it like this with the values used in this guide:

10.7.0.1 traefik.homelab.cloud headlamp.homelab.cloud

See how Headlamp’s DNS name goes after the one for Traefik. The Traefik service can figure out where to redirect clients depending on the DNS name indicated in their requests.

Open a browser in your client system and go to https://headlamp.homelab.cloud/, or whatever hostname you may have configured for your Headlamp dashboard. The browser will warn you about the connection being insecure. Accept the warning to reach Headlamp’s authentication form:

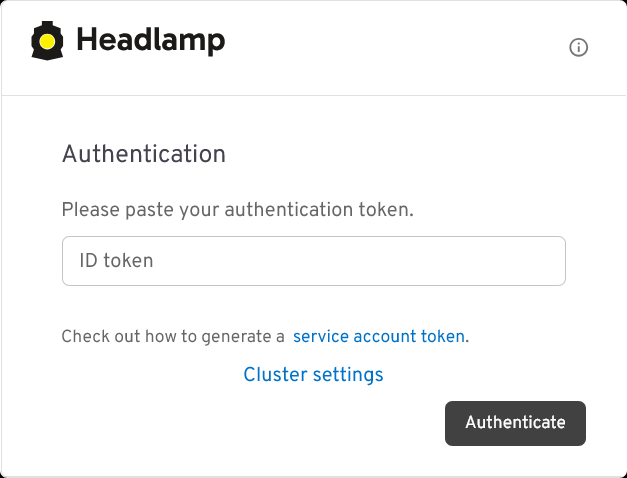

Headlamp authentication form with secret token
This form requests an authentication token for signing into Headlamp. Use the headlamp-admin service account’s token you generated previously to authenticate into Headlamp.
After authenticating, you get directly into Headlamp’s Clusters page:

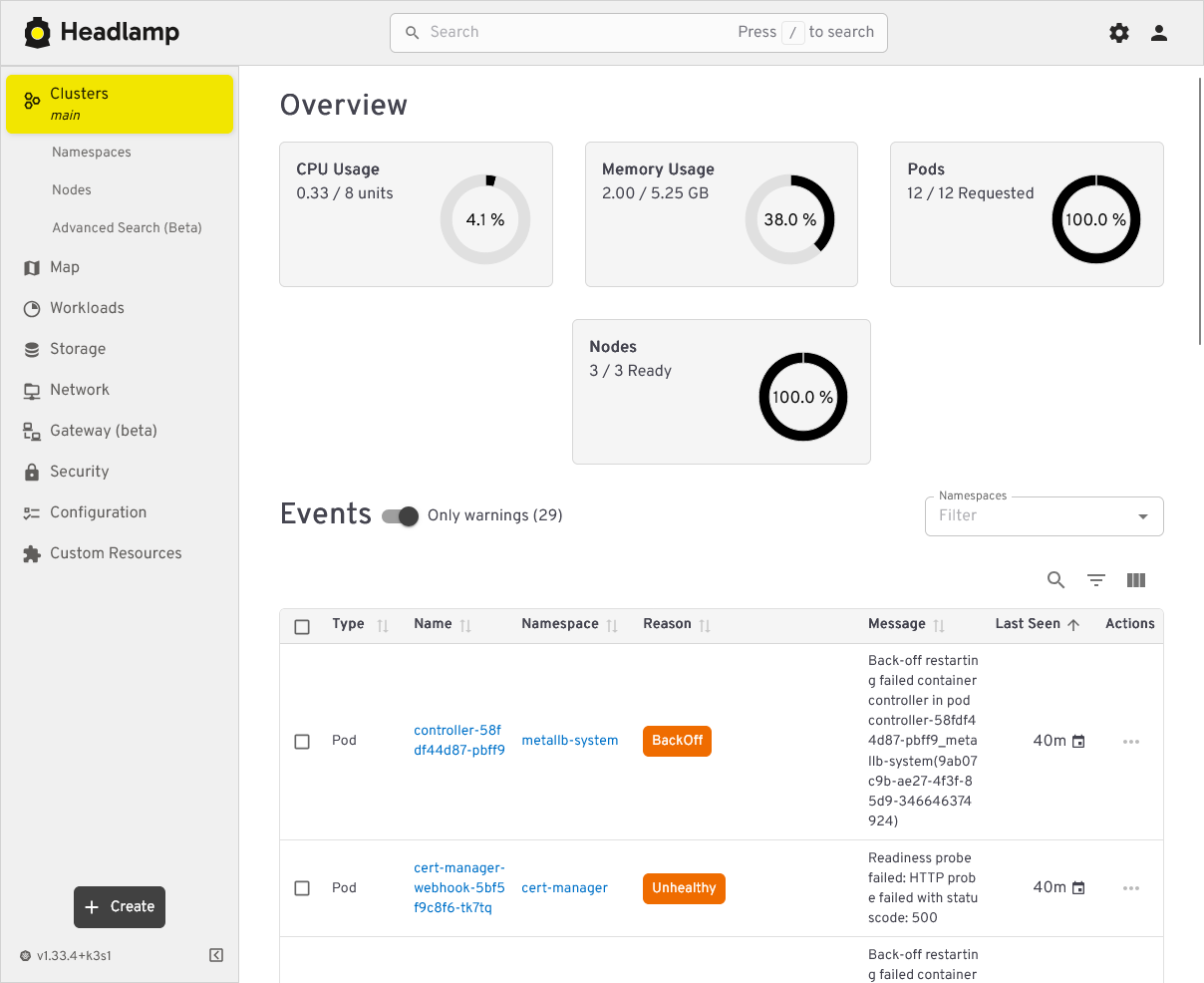

Headlamp Clusters main page
This the main page of Headlamp. It provides you with a summarized view of your cluster status, including statistics about resources usage and a listing of events that have happened in your cluster. If you happen to have warning events, this page will automatically enable the “Only warnings” mode to show you just warning events.
Try out the other views Headlamp offers to get familiarized with this tool. In particular, you may like to try out the Map:

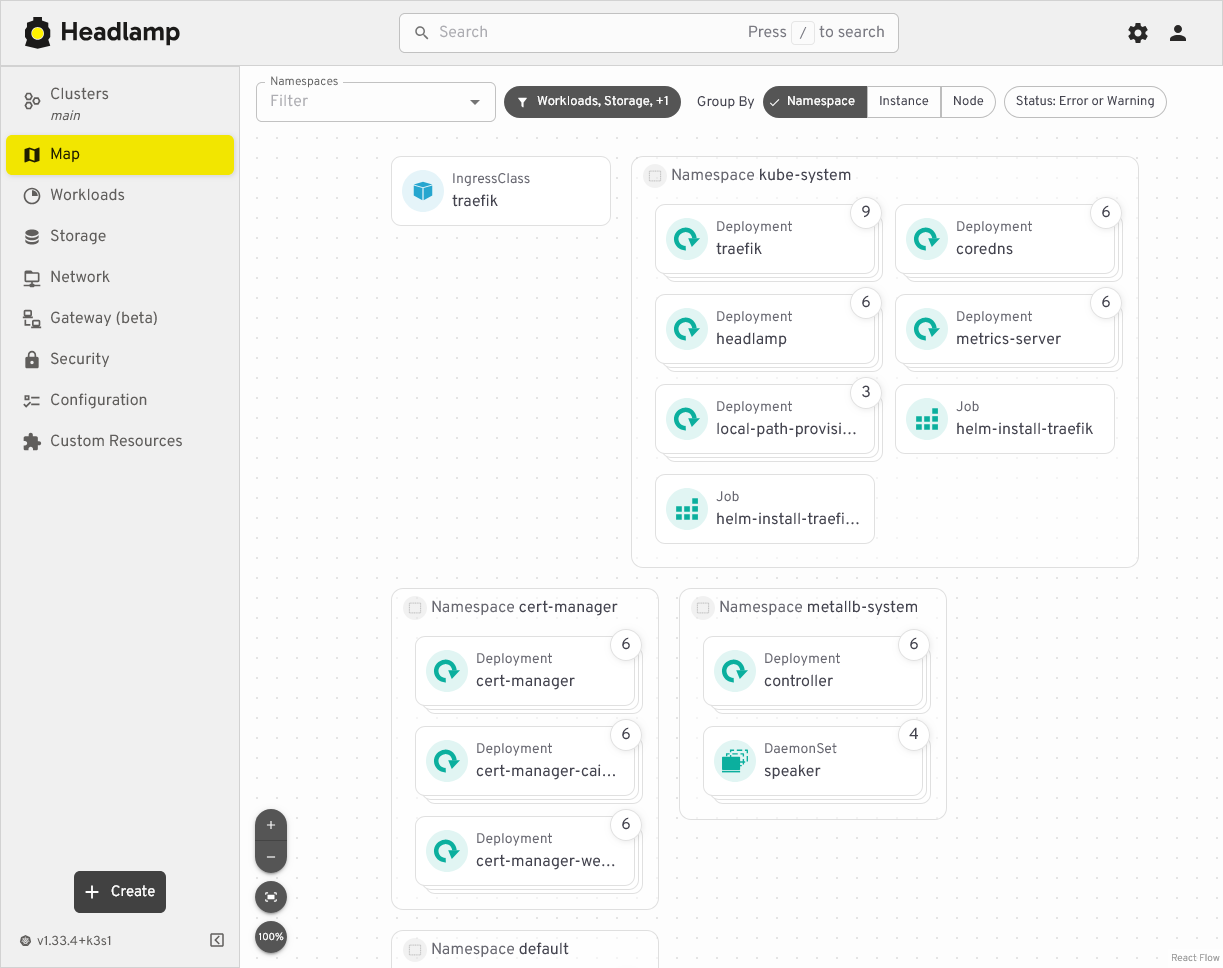

Headlamp Map view of cluster components
This view provides a zoomable map that can show your cluster components grouped under three different criteria: by namespace, by instance, or by node. This feature will help you to locate more easily any component deployed in your K3s cluster.

Headlamp’s Kustomize project attached to this guide

You can find the Kustomize project for this Headlamp deployment in this attached folder:

k8sprjs/headlamp

Relevant system paths

Folders in `kubectl` client system

$HOME/k8sprjs/headlamp
$HOME/k8sprjs/headlamp/resources

Files in `kubectl` client system

$HOME/k8sprjs/headlamp/kustomization.yaml
$HOME/k8sprjs/headlamp/resources/cluster-admin-users.clusterrolebinding.yaml
$HOME/k8sprjs/headlamp/resources/headlamp-admin.serviceaccount.yaml
$HOME/k8sprjs/headlamp/resources/headlamp.homelab.cloud-tls.certificate.cert-manager.yaml
$HOME/k8sprjs/headlamp/resources/headlamp.ingressroute.traefik.yaml

References
