Enabling the Traefik dashboard

Traefik is the embedded ingress controller of K3s

Traefik is the default ingress controller that already comes embedded in K3s. In other words, you can enable access to services running in your cluster through Traefik ingresses, instead of just assigning them external IPs directly (in particular, with the MetalLB load balancer).

Traefik in K3s comes with its embedded web dashboard enabled by default, but reaching it requires a particular setup not clearly explained in the official documentation of neither Traefik nor K3s.

Steps to enable access to the Traefik dashboard

This chapter shows you how to enable HTTPS access to your Traefik dashboard by doing the following:

  1. Creating a user to restrict access into the Traefik dashboard.

  2. Declaring an IngressRoute that enables access to a TraefikService where the dashboard is available. This IngressRoute enforces basic authentication with the user created in the previous step.

The first step is just the execution of a command on your kubectl client. The other is resolved in the corresponding Kustomize project.

Kustomize project’s folder structure

Create the Kustomize project’s folder structure:

$ mkdir -p $HOME/k8sprjs/traefik-dashboard/{resources,secrets}

This project has one resources subfolder for storing Kubernetes resources declarations, and a secrets one to keep a file with the secret string describing the user for accessing the Traefik dashboard.

Traefik dashboard user

Secure the access to your Traefik dashboard by defining at least one user with a password. Later in this chapter, this user will go into a Secret object generated by this Traefik dashboard’s Kustomize project.

Creating the user with htpasswd

Traefik demands passwords hashed using MD5, SHA1, or BCrypt, and recommends using the htpasswd command to generate them:

  1. Install the package providing the htpasswd command in your kubectl client system. The package is apache2-utils and, on a Debian based system, you can install it with apt:

    $ sudo apt install -y apache2-utils

  2. Next, use the htpasswd command to generate a user called, for instance, tfkuser with the password hashed with the BCrypt encryption:

    $ htpasswd -nb -B -C 9 tfkuser Pu7Y0urV3ryS3cr3tP4ssw0rdH3r3
tfkuser:$2y$17$0mdP4WLdbj8BWj1lIJMDb.bXyYK75qR5AfRNzuunZuCamvAlqDlo.

    Important

    Be careful with the value you set to the -C option!
    This option indicates the computing time used by the BCrypt algorithm for hashing and, if you set it too high, the Traefik dashboard could end not loading at all. The value you can type here must be between 4 and 17, and the default is 5.

    Keep the htpasswd’s output at hand, you will use that encrypted string in the next procedure.

Traefik dashboard secret

Copy the user string returned by htpasswd in a text file. Later, you will put this file in a Secret object generated by the Kustomize project:

  1. Create a file simply called users in the secrets folder of the Kustomize project:

    $ touch $HOME/k8sprjs/traefik-dashboard/secrets/users

  2. In the users file, copy the entire string you got from the htpasswd command earlier:

    tfkuser:$2y$17$0mdP4WLdbj8BWj1lIJMDb.bXyYK75qR5AfRNzuunZuCamvAlqDlo.

    Warning

    Be careful of who can access this users file
    Regardless of the password being hashed, the hash itself is also secret information you do not want to get exposed to anyone.

Traefik dashboard Middleware

To restrict access to your Traefik dashboard with a login, you need a Middleware object to enable the basic authentication feature in the ingress route you will declare later:

  1. Create the traefik-dashboard-basicauth.middleware.traefik.yaml file in the resources folder of the Kustomize project:

    $ touch $HOME/k8sprjs/traefik-dashboard/resources/traefik-dashboard-basicauth.middleware.traefik.yaml

  2. Declare in traefik-dashboard-basicauth.middleware.traefik.yaml the authentication method to use for login in the Traefik dashboard:

    # Basic authentication method for Traefik dashboard
apiVersion: traefik.io/v1alpha1
kind: Middleware

metadata:
  name: traefik-dashboard-basicauth
spec:
  basicAuth:
    secret: traefik-dashboard-basicauth-secret

    A Middleware is a custom Traefik resource, used in this case for configuring a basic authentication method (a user and password login method). In the spec.basicAuth.secret parameter, this middleware invokes a Secret resource to be declared later in the Kustomize manifest for this Traefik dashboard project.

Traefik dashboard IngressRoute

To enable access into your Traefik dashboard, you need to declare an HTTPS ingress:

  1. Create the following files within the Kustomize project:

    $ touch $HOME/k8sprjs/traefik-dashboard/resources/traefik-dashboard.ingressroute.traefik.yaml

  2. Declare in traefik-dashboard.ingressroute.traefik.yaml the IngressRoute resource enabling access to the Traefik dashboard:

    # HTTPS ingress for Traefik dashboard and API
apiVersion: traefik.io/v1alpha1
kind: IngressRoute

metadata:
  name: traefik-dashboard
spec:
  routes:
  - kind: Rule
    match: Host(`traefik.homelab.cloud`) && (PathPrefix(`/api`) || PathPrefix(`/dashboard`))
    services:
    - name: api@internal
      kind: TraefikService
    middlewares:
    - name: traefik-dashboard-basicauth

    This is a Traefik IngressRoute object specifying the route and the authentication method to access your Traefik dashboard:

    Important

    The IngressRoute is NOT a standard Kubernetes resource
    It is a custom alternative to the standard Ingress Kubernetes object offered only by Traefik. Other ingress controllers may have their own alternatives to the standard Kubernetes Ingress object.

    • In the spec.entryPoints there is only the websecure option enabled. This means that only the 443 port is enabled as entry point to this route.

    • The spec.routes.match parameter indicates to Traefik the valid URL patterns reachable through this IngressRoute:

      • First in the pattern is the hostname of the Traefik service set as Host value. Next go the possible paths in Traefik, one for its API and the other for the Traefik dashboard.

        Notice the logic operators && (and) and || (or) that allow connecting the hostname with the available paths in the service.

        Note

        The domains or subdomains you set up as Host values will not work just by being put there
        You have to enable them in your network’s router or gateway, local DNS or associate them with their corresponding IP in the hosts file of any client systems connected to your network that require to know the correct IP for those domains or subdomains.

      • Do not forget any of the backticks characters ( ` ) enclosing the strings in the Host directives.

      • The spec.routes.services links the IngressRoute with the TraefikService (a custom Traefik-specific type of Kubernetes Service) called api@internal through which you can access the Traefik dashboard. Also notice that no service port is specified.

        Note

        There is no official proper explanation for this api@internal TraefikService
        This api@internal could be some sort of alias or wrapper of the real traefik Service running in the K3s cluster. This may also explain why it is not necessary to specify which port to connect to in the service.

      • The spec.routes.match.middlewares only invokes the basic authentication middleware.

Traefik dashboard Kustomize project

Put together all the resources making up your Traefik dashboard ingress in a Kustomize manifest:

  1. Generate a kustomization.yaml file at the main folder of this Kustomize project:

    $ touch $HOME/k8sprjs/traefik-dashboard/kustomization.yaml

  2. In the kustomization.yaml file, declare your Kustomization object for enabling access into the Traefik dashboard:

    # Traefik dashboard ingress setup
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

namespace: kube-system

resources:
- resources/traefik-dashboard-basicauth.middleware.traefik.yaml
- resources/traefik-dashboard.ingressroute.traefik.yaml

secretGenerator:
- name: traefik-dashboard-basicauth-secret
  files:
  - secrets/users
  options:
    disableNameSuffixHash: true

    See that there is a secretGenerator block in this Kustomization declaration:

    • This is a Kustomize feature that generates Secret objects in a Kubernetes cluster containing files or environment variables specified in its declaration.

    • The namespace puts all the resources and the secret generated by this Kustomize project under the kube-system namespace.

    • The one secret generated is configured with a concrete name and namespace. It also has under files a reference to the users file you created previously under the secrets subfolder.

    • The disableNameSuffixHash option is required to be true. Otherwise, Kustomize will add a hash suffix to the secret’s name and your Middleware will not be able to find it in the cluster.

      Note

      This is an issue between Traefik and Kubernetes Kustomize
      The suffix problem happens because the Middleware object declares the secret’s name in a non-Kubernetes-standard parameter which Kustomize does not recognize. Therefore, Kustomize cannot replace the name with its hashed version in the spec.basicAuth.secret parameter.

Validating the Kustomize YAML output

To validate the Secret object, you can review it with kubectl kustomize:

$ kubectl kustomize $HOME/k8sprjs/traefik-dashboard | less

Look for the Secret object in the resulting YAML, it should have this aspect:

apiVersion: v1
data:
  users: |
    dGZrdXNlcjokMnkkMTckMG1kUDRXTGRiajhCV2oxbElKTURiLmJYeVlLNzVxUjVBZlJOenV1blp1
    Q2FtdkFscURsby4K
kind: Secret
metadata:
  name: traefik.homelab.cloud-basic-auth-secret
  namespace: kube-system
type: Opaque

Notice the following details in this Secret object:

  • In the data.users parameter there is an odd-looking string. This is the content of the secrets/user file referenced in the secretGenerator block, automatically encoded by Kustomize in base64. You can check that it is the same string on the file by decoding it with base64 -d as follows.

    $ echo dGZrdXNlcjokMnkkMTckMG1kUDRXTGRiajhCV2oxbElKTURiLmJYeVlLNzVxUjVBZlJOenV1blp1Q2FtdkFscURsby4K | base64 -d
tfkuser:$2y$17$0mdP4WLdbj8BWj1lIJMDb.bXyYK75qR5AfRNzuunZuCamvAlqDlo.

    See that the base64 string is entered in one line, although it had been returned split in two in the Secret object output.

  • The metadata.name and metadata.namespace are exactly as specified in the kustomization.yaml file.

  • The type Opaque means that the content under data is base64-encoded.

Deploying the Traefik dashboard Kustomize project

After verifying the YAML output of the Kustomize project, apply it in your cluster:

$ kubectl apply -k $HOME/k8sprjs/traefik-dashboard

Getting into the Traefik dashboard

Assuming you have enabled the DNS name or hostname for the Traefik service as traefik.homelab.cloud in your LAN, try to access the URL https://traefik.homelab.cloud/dashboard:

Note

Remember to associate your Traefik service’s IP to the DNS name or hostname you have chosen for it
The fastest way is usually adding an entry in the hosts file of the client system you are using. For the Traefik service’s IP and DNS name used in this guide, that entry would look like this:

10.7.0.1 traefik.homelab.cloud

Also be aware that you can associate more than one DNS name to the same IP, in the same line even.

  1. The first thing you will probably see is a browser warning telling you that the connection is not secure because the certificate is not either. If you check the certificate’s information, you will see it being one self-generated by Traefik itself (“verified” by CN=TRAEFIK DEFAULT CERT).

  2. Right after accepting “the risk” in the security warning, a generic “Sign in” window will pop up in your browser:

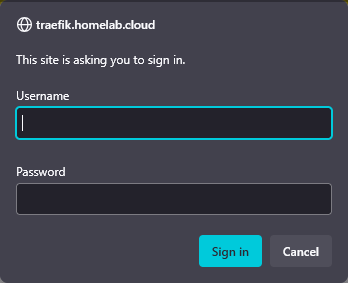

    Traefik dashboard window for basic authentication
    Traefik dashboard window for basic authentication

  3. Type your user and password, press on Sign in and you will be redirected to the Traefik dashboard’s main page available under the /dashboard/#/ path:

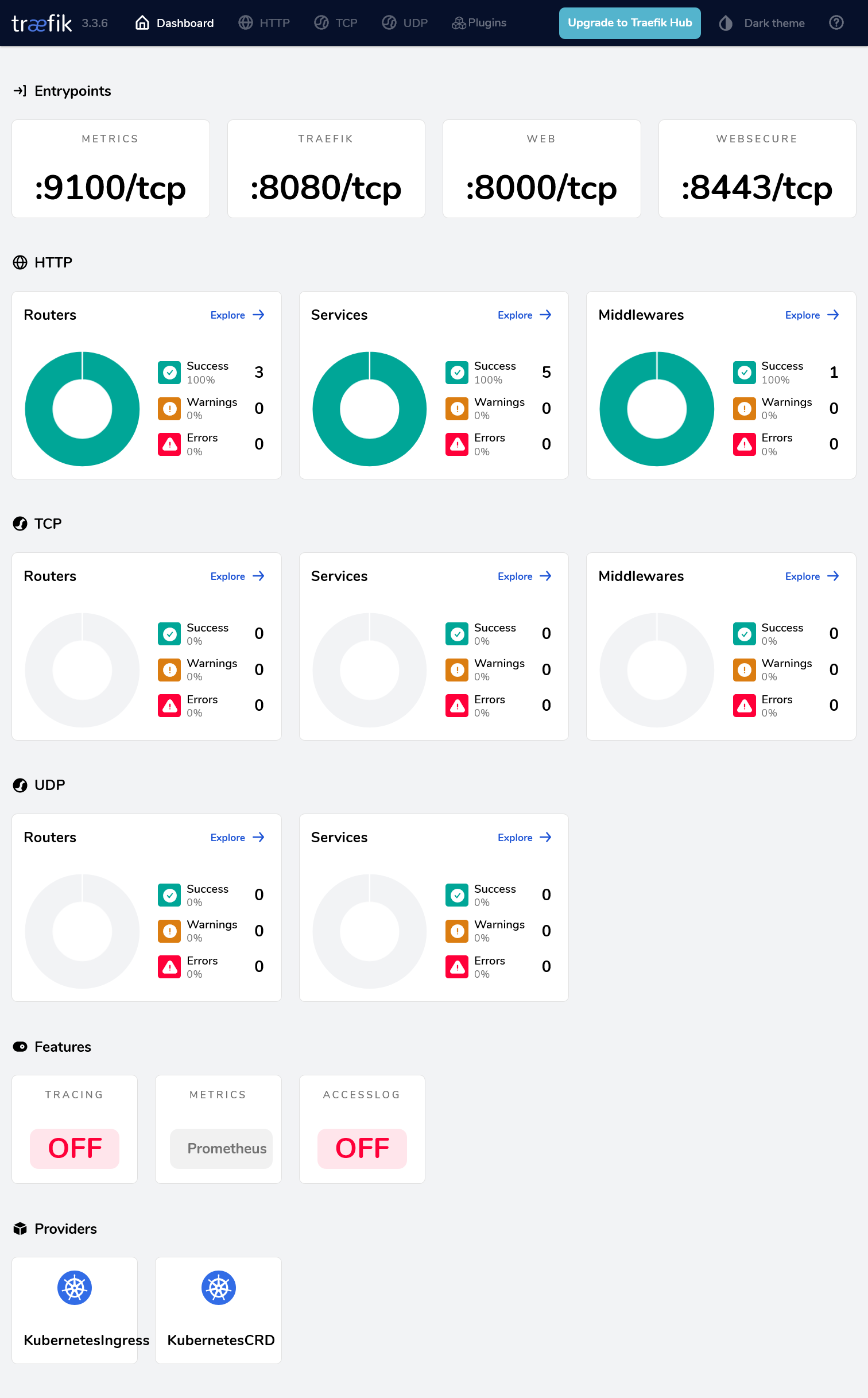

    Traefik dashboard main page
    Traefik dashboard main page

What to do if Traefik’s dashboard has bad performance

If your Traefik dashboard seems to load extremely slowly, or just returning a blank page, it could be that you set the -C value in the htpasswd command too high. This can affect the Traefik dashboard’s performance, hitting badly the node were the traefik service is being executed. So, if this is happening to you, try the following:

  1. Generate a new user string with htpasswd as you saw previously, but with a lower -C value than the one you used in the first place. Then replace the string you already have in the secrets/users file with the new one.

  2. Delete and then reapply the Kustomize project again:

    $ kubectl delete -k $HOME/k8sprjs/traefik-dashboard
$ kubectl apply -k $HOME/k8sprjs/traefik-dashboard

    The delete command is just to make sure that the IngressRoute resource is regenerated with the change applied.

  3. Try to access your Traefik dashboard and see how it runs now.

Traefik dashboard’s Kustomize project attached to this guide

Find the Kustomize project for this Traefik dashboard deployment in the following attached folder:

Relevant system paths

Folders in kubectl client system

  • $HOME/k8sprjs/traefik-dashboard
  • $HOME/k8sprjs/traefik-dashboard/resources
  • $HOME/k8sprjs/traefik-dashboard/secrets

Files in kubectl client system

  • $HOME/k8sprjs/traefik-dashboard/kustomization.yaml
  • $HOME/k8sprjs/traefik-dashboard/resources/traefik-dashboard.ingressroute.traefik.yaml
  • $HOME/k8sprjs/traefik-dashboard/resources/traefik-dashboard.service.yaml
  • $HOME/k8sprjs/traefik-dashboard/resources/traefik-dashboard-basicauth.middleware.traefik.yaml
  • $HOME/k8sprjs/traefik-dashboard/secrets/users
